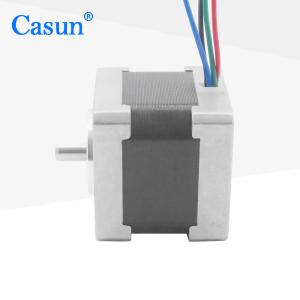

35x35mm 155mN.M Nema 14 Hybrid Stepper Motor For Beauty Equipment 1A 3.8V

Name: 35x35mm 155mNM Nema 14 Hybrid Stepper Motor For Beauty Equipment 1A 38V
Brand: Casun
Price: 4.2 USD

China 35x35mm 155mN.M Nema 14 Hybrid Stepper Motor For Beauty Equipment 1A 3.8V factory

Brand Name : Casun

Model Number : 35SHD4103-10B

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.2-$5.2

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 155mN.m

Current : 1A

Motor Length : 34mm

Shaft : Round Shaft 10mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Nema 14 Hybrid stepper motor 35x35mm 1A 3.8V 155mN.m for beauty equipment

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1 A
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8mH
Rotor Inertia	14 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
