【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories

Name: 42SHD042342x42x48mm Nema 17 Stepping Motor 18 Degree 2 Phase 15A High Quality for 3D Printer Accessories
Brand: Casun
Price: 3.14 USD

China 【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories factory

Brand Name : Casun

Model Number : 42SHD0423-22B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 550mN.m

Current : 1.5A

Motor Length : 48mm

Shaft : Milling Flat Shaft 22mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 42mm Hybrid Stepper Motor have good torque characteristics and can provide stable output torque even at low speeds and high loads.

Robotics, 3D printers, Engraving equipment, and Printers.

Features:

Accept contract manufacturing
For high-tech industry and electronic industry equipment
Every stepper motor model has use in a variety of situations
Seasoned expert in drivetrain solutions
The best solution will be offered by our engineers in contact with you within 48 hours

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	550 mN.m
Resistance	2.4 ohm
Inductance	4.0 mH
Rotor Inertia	72 g-cm²
Motor weight	0.38 kg
Number of leads	4
Connection	Bipolar

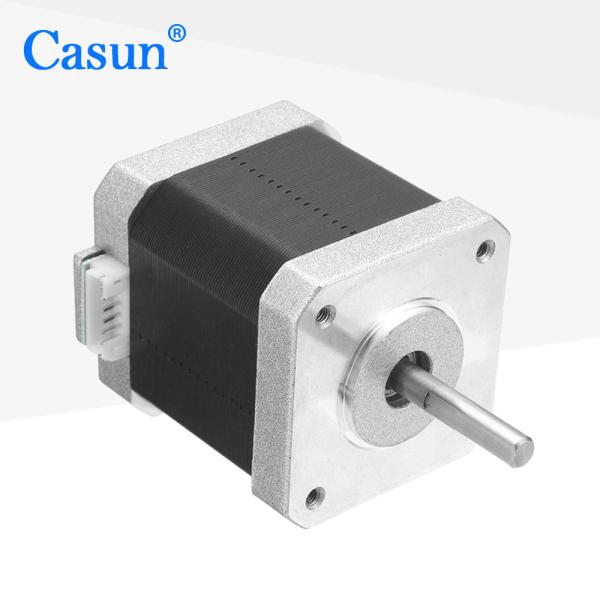

Appearance

【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories

Dimensions

【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
