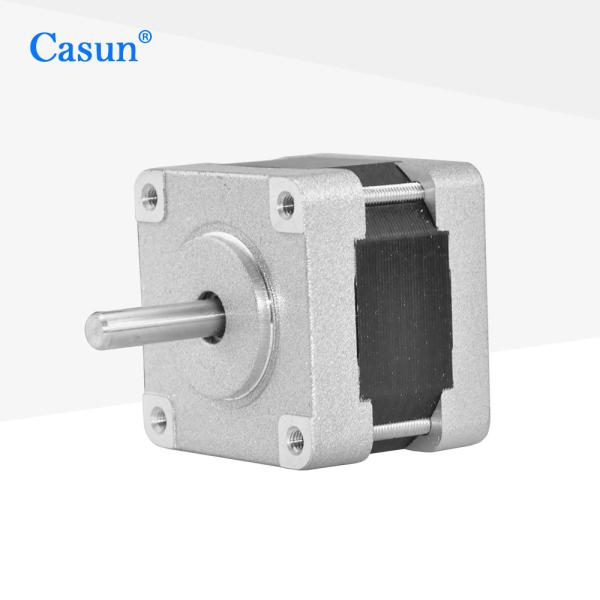

Hybrid 0.4A 12V Bipolar Stepper Motor NEMA 16 2 Phase 39X39x26mm

Name: Hybrid 04A 12V Bipolar Stepper Motor NEMA 16 2 Phase 39X39x26mm
Brand: Casun
Price: 4.14 USD

China Hybrid 0.4A 12V Bipolar Stepper Motor NEMA 16 2 Phase 39X39x26mm factory

Brand Name : Casun

Model Number : 39SHD0611-15

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 200mN.m

Current : 1.0A

Motor Length : 25mm

Shaft : Round Shaft 15mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

A 39mm high-precision and high-precision motor can achieve very precise motion control.

It is one of the preferred motors for many fields such as automobiles, robots, 3D printers, etc

Features:

Bipolar or unipolar versions available
12 years old and has served more than 800 clients in China.
Available in single or double shaft versions
Ten-year warranty and purchase with confidence
We accept contract manufacturing and provide specialised services. Needed dealers!

Motor Specifications

Step Angel	1.8 °
Fram Size	39 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	200 mN.m
Resistance	30 ohm
Inductance	42 mH
Rotor Inertia	18 g-cm²
Motor weight	0.17 kg
Number of leads	2
Connection	Bipolar

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Hybrid 0.4A 12V Bipolar Stepper Motor NEMA 16 2 Phase 39X39x26mm

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
39SHD0001-20	100mN.m	1.8°	20mm	Round Shaft 20mm	0.48A
39SHD0504-20	100mN.m	1.8°	22mm	Round Shaft 20mm	0.4A
39SHD0611-20	200mN.m	1.8°	25mm	Round Shaft 20mm	0.4A
39SHD0302-20	220mN.m	1.8°	34mm	Round Shaft 20mm	0.4A
39SHD0401-24	220mN.m	1.8°	38mm	Round Shaft 24mm	0.4A
39SHD0801-24B	220mN.m	1.8°	48mm	D Shaft 24mm	0.4A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
