575754mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit

Name: 575754mm Stepping Motor 2 Phase NEMA 23 23V 30A For 3 Axsis 4 Axsis CNC Kit
Brand: Casun
Price: 3.14 USD

China 57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit factory

Brand Name : Casun

Model Number : 57SHD4425-21B1H

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 1.1N.m

Current : 3.0A

Motor Length : 54mm

Shaft : Milling Flat Shaft 21mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A for 3 Axsis 4 Axsis CNC Kit

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

High torque and high precision
Professional drivetrain solution specialist
Our engineers will be in touch within 48 hours to provide the best solution
We offer custom services and accept contract manufacturing
High torque and high precision

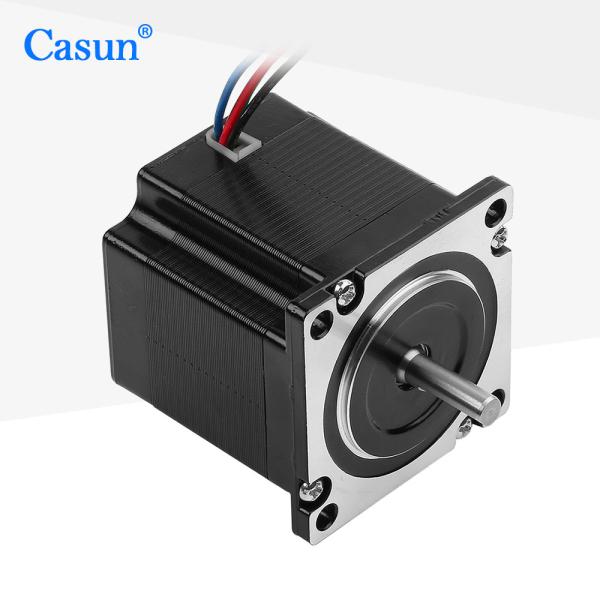

Appearance

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit

Dimensions

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	3.0 A
Holding Torque	1.1 N.m
Resistance	0.75 ohm
Inductance	2.0 mH
Rotor Inertia	260 g-cm²
Motor weight	0.6 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
