424234mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

Name: 424234mm 2 Phase Stepping Motor Nema 17 06A With CE ISO RHO Certification
Brand: Casun
Price: 3.14 USD

China 42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification factory

Brand Name : Casun

Model Number : 42SHD4071-24BH

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 320mN.m

Current : 0.6A

Motor Length : 34mm

Shaft : Milling Flat Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

42*42**34mm With CE ISO RHO Certification 2 Phase Stepping Motor Nema 17

The 42mm stepper motor is commonly used in 3D printers to drive the position and movement of the print head.

High precision and reliability enable printers to accurately perform printing operations.

Features:

Bipolar or unipolar versions available
We provide customized services and welcome contract manufacturing
Focused on drivetrain solutions
Professional research and development manufacturing
Our engineers will respond within 48 hours to provide the best solution

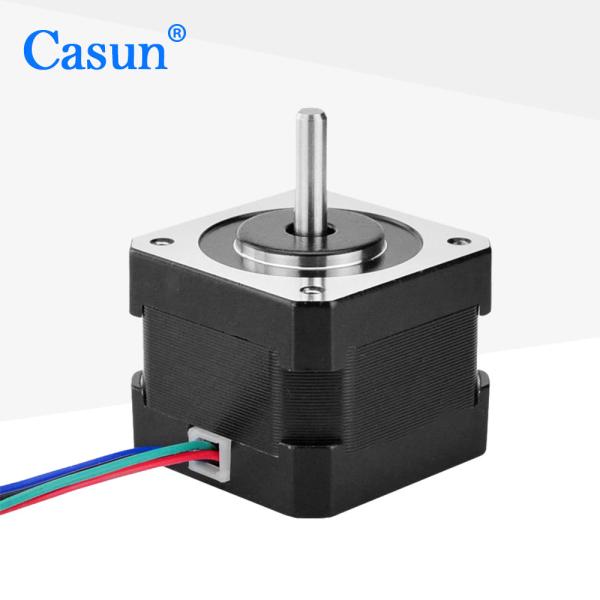

Appearance

42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

Dimensions

42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	320 mN.m
Resistance	20 ohm
Inductance	29 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
