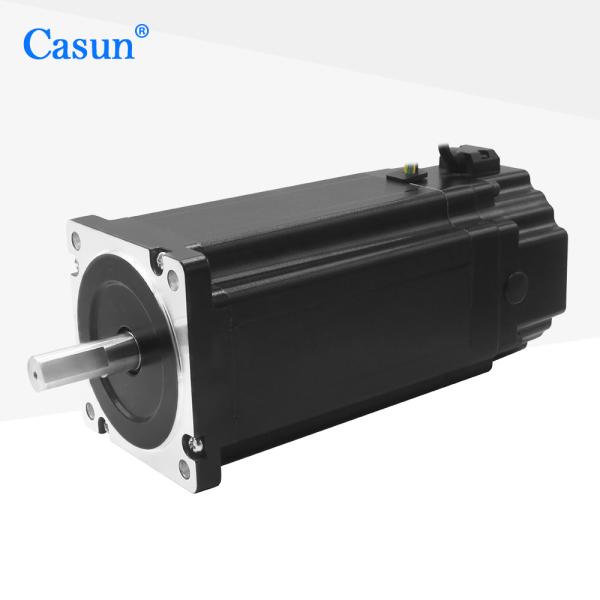

NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery

Name: NEMA 34 Stepping Motor With Broke 106Nm 8 Wire For Textile Machinery
Brand: Casun
Price: 24.92 USD

China NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery factory

Brand Name : Casun

Model Number : 86SHD8503-37BH-HP86

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $24.92-$25.96

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 10.6N.m max

Current : 5.7A max

Motor Length : 150mm

Shaft : Keyway shaft 32mm Length

Contact Now

Suitable for various mechanical and automation equipment, such as CNC machine tools, packaging machinery, textile machinery, etc.

The braking function of the stepper motor can quickly stop the motor when needed.

Features:

We welcome contract manufacturing partnerships
Enjoy a ten-year warranty and purchase with confidenc
Combining proficient R&D with dedicated manufacturing processes
Expect to hear from our engineers within 48 hours with the best solution for your needs
Specialist in professional drivetrain solutions

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	86 mm
Number of Phase	2 Phase
Rated Current	5.7 A max
Holding Torque	10.6N.m max
Resistance	0.42ohm
Inductance	4.7mH
Rotor Inertia	3600 g-cm²
Motor weight	5.0 kg
Number of leads	8
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
86SHD4003-32	4.0N.m	1.8°	69mm	Key Shaft-32mm	4.0A
86SHD4101-32	4.5N.m	1.8°	76mm	Key Shaft-32mm	4.0A
86SHD4201-37	5.6N.m	1.8°	98mm	Key Shaft-37mm	4.0A
86SHD4314-37	6.8N.m	1.8°	112mm	Key Shaft-37mm	5.0A
86SHD4404-37	8.0N.m	1.8°	127mm	Key Shaft-37mm	5.0A
86SHD4505-37	12.0N.m	1.8°	150mm	Key Shaft-37mm	5.5A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery

Please click the "Get a quote" button below to tell us your requirements.
